Producing a noise level of just 35dB, the Barco laser phosphor projectors are the quietest laser phosphor projectors currently available.* Designed for fixed installation, the compact and lightweight PGWU-62L projector features WUXGA resolution (1,920 x 1,200). Its laser phosphor light source offers long lifetime, low maintenance (no lamps, no filters) and great color performance.
What you’ll love about the PGWU-62L
- Quietest laser phosphor projector on the market*
- Long lifetime of 20,000 hours
- Low total cost of ownership thanks to laser light source
- Compact, lightweight and stylish design that seamlessly blends in
- Flexible installation thanks to 360° rotation and portrait mode
- High-quality images with an unmatched level of detail and contrast
- Button-free and cable-free for simple operation and less clutter
- Available in black and white
- Reliable DLP technology for true ease of mind
- Flexible color management thanks to preset image modes
- Intuitive control menu with the most common features at your fingertips
- User-friendly remote control that features just one button
ClickShare Inside
Supporting the integration of optional connectivity modules, the PGWU-62L is future-proof and can be upgraded with extra functionalities. Based on Barco’s wireless presentation system the ‘ClickShare Inside’ option can be nicely integrated – allowing users to wirelessly share their content on-screen, for true collaboration.
- Specs
| Projector type | WUXGA single-chip DLP projector |
|---|---|
| Technology | 0.67″ DMD |
| Resolution | 1,920 x 1,200 WUXGA |
| Brightness | 6,000 ANSI lumens* |
| Contrast ratio | 11,000:1* |
| Brightness uniformity | 90%* |
| Aspect ratio | 16:10 |
| Lens type | G lens |
| Lenses | 1.22-1.53:1; 0.95-1.22:1; 1.52-2.92:1; 2.90~5.50 |
| Optical lens shift | Vertical: -100% to +100% / horizontal: -30% to +30% |
| Color correction | Yes |
| Light source | Laser diode |
| Light source lifetime | 20,000 hours (bright mode) |
| Sealed DLP™ core | yes |
| Advance Picture in Picture | yes |
| Orientation | Ceiling/floor, front/rear, 360 degree free installation, portrait |
| Integrated web server | Yes |
| 3D | N/A |
| Keystone correction | app. +/-20° vertical |

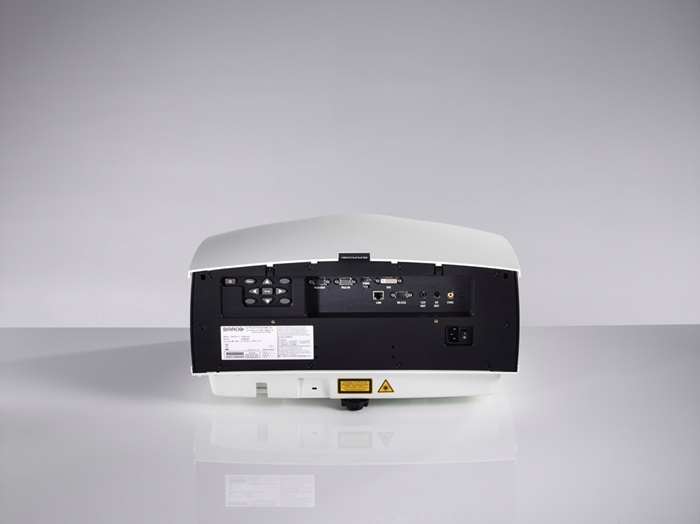

| Inputs | VGA-in, VGA-out, HDMI, DVI, CVBS, LAN, RS232, 12V out, 5V out; |
| Input resolutions | up to WUXGA (1,920 x 1,200) 60Hz |
| Software tools | Projector Toolset |
| Control | IR, RS232, RJ45 |
| Network connection | 10/100 base-T, RJ-45 connection |
| Power requirements | 100-240V / 50-60Hz |
| Max. power consumption | 580 W |
| Noise level (typical at 25°C/77°F) | 35 dBA (bright mode)/ 32 dBA (eco mode) |
| Operational ambient temperature | 5-40°C / 41°-104°F (sea level) |
| Operational humidity | 10-85% |
| Dimensions (WxLxH) | 506 x 516 x 251 mm (without cable cover) |
| Weight | 17.5 kg |
| Shipping dimensions (WxLxH) | 796 x 595 x 378mm |
| Housing color | Black and white |
| Standard accessories | Power cord, wireless remote control, lens cover |
| Certifications | CB test certificate, US emc, US safety, CE emc and safety, CCC emc and safety |
| Warranty | Limited 3 years parts and labor. Extendable up to 5 years. |
| * | Measurement, measuring conditions, and method of notation all comply with ISO 21118 international standards. |
Options
Lenses
G lens (0.75-0.95 : 1)
Article number: R9832781
G lens (0.95-1.22 : 1)
Article number: R9832755
G lens (1.22-1.53 : 1)
Article number: R9832754
G lens (1.26-1.58:1)
Article number: R9832753
G lens (1.52-2.92 : 1)
Article number: R9832756
G lens (2.90-5.50 : 1) ultra long zoom
Article number: R9832778
Accessories
Projector Toolset
All-in-one remote projector management software
Article number: R9850559
Others
ClickShare Inside integration kit
Contains bracket, HDMI and USB to RS-232 cable to integrate the CSM Base Unit
Article number: R9801202,R9801202D10
Apps
Barco Browse app
Central control hub for Barco products with web interface
Module
HDBaseT module
Receiver module for Present-P projectors
Article number: R9801305
